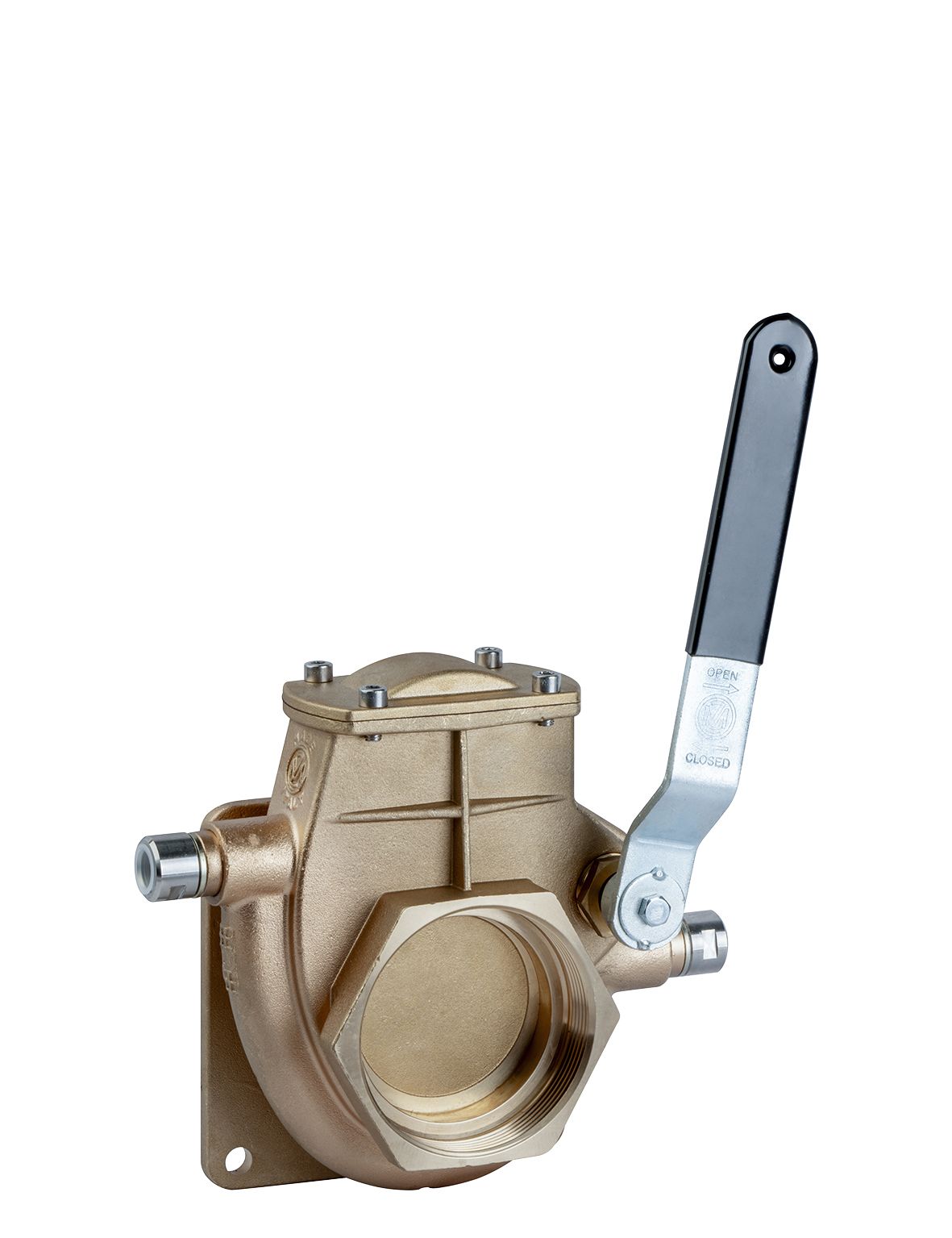

Art. 0036 – Heatable lever gate valve with 1 flange GAS thread

Heated lever gate valve with one flange and one GAS threaded sleeve. DN sizes available: 3”- 4”- 6″.

Thread: BSP parallel UNI EN ISO 228/1.

Brass gate valve with closing device with angular movement, specifically designed for use in agriculture and industry on tankers and vacuum truck vehicles used for sewage transport and treatment. These can also be used in other fields such as in the presence of dense, granular and/or farinaceous liquids.
The angular movement to close the gate is activated by manual opening levers or by a pneumatic actuator.
The upper part serves to contain the two discs when the valve is opening and provides a point of attachment for pneumatic actuators.

Gate valves are considered pressure vessels and are thus subject to the PED directive (2014/68/CE). The PED directive equates valves to piping. For further details, please log in and download the manual.
Metal-to-metal sealing is ideally suited for handling slurry and other dense fluids, ensuring reliable and robust performance even under the most demanding operating conditions. It is not intended for applications requiring a high degree of sealing when closed.
In all cases where a high degree of seal must be guaranteed, the use of blade gates such as articles 0080 – 0090 – 0100 – 0130 (and related variants) are recommended. The technical specifications and data for these articles can be found in the company catalogue Log in to download it here .

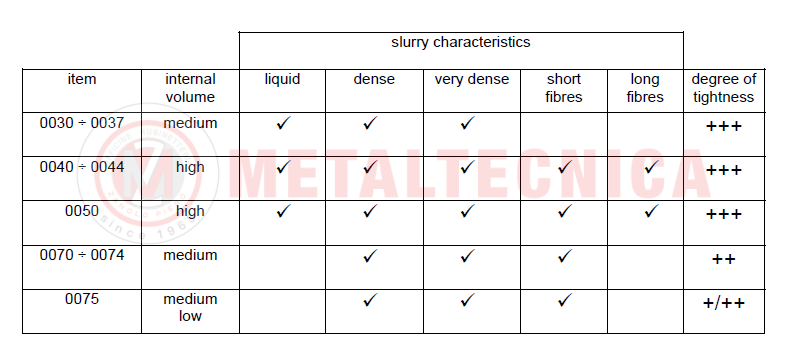

The choice of the gate must be made according to the characteristics of the plant and the type of slurry to be handled. The following table provides a preliminary general indication of the suitability of the different gates.
